What Are Bearing Housings

Bearing housings are essential components in various machinery, providing support and protection for bearings, which in turn facilitate smooth rotational movement in mechanical systems. Understanding bearing housings is crucial for anyone interested in machinery maintenance or mechanical engineering.

What Are Bearing Housings?

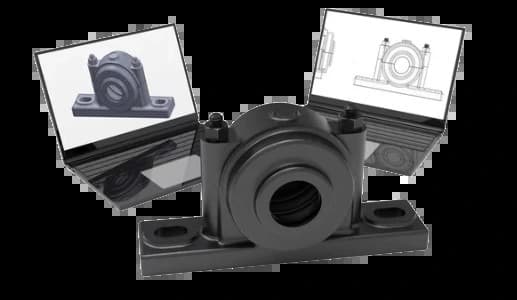

A bearing housing, sometimes referred to as a bearing pedestal or pillow block, is a robust structure designed to house and support a bearing. Its primary function is to secure the bearing in place, ensuring it remains stationary while allowing the inner part to rotate. This setup reduces friction and wear, enhancing the efficiency and lifespan of machinery.

Types of Bearing Housings

Bearing housings come in various designs to accommodate different applications and requirements. Some common types include:

• Plummer Blocks: These are pedestal-like housings used with bearings for supporting rotating shafts. They are widely used due to their robustness and ease of installation.

• Flanged Housings: Featuring a flange on their mounting surface, these housings can be attached to a machine frame or wall, providing support in perpendicular orientations.

• Take-Up Housings: Designed to allow adjustment of the bearing position, these housings are ideal for applications where tensioning of the shaft is necessary, such as in conveyor systems.

Materials Used in Bearing Housings

The choice of material for a bearing housing depends on the operational environment and load requirements. Common materials include:

• Cast Iron: Known for its durability and strength, cast iron is commonly used in general applications.

• Steel: Offers higher strength and is used in applications with heavier loads or higher speeds.

• Plastic or Composite Materials: Used in applications where weight reduction, corrosion resistance, or chemical resistance is important.

Why Are Bearing Housings Important?

Bearing housings play a pivotal role in machinery for several reasons:

1. Protection: They shield bearings from contaminants like dust, dirt, and moisture, which can cause premature wear or failure.

2. Support: By securely holding the bearing, housings ensure accurate alignment and positioning of rotating components, which is vital for smooth operation.

3. Load Distribution: They help in evenly distributing the load carried by the bearing, reducing stress and extending the service life of both the bearing and the machinery.

4. Maintenance Ease: Many bearing housings are designed for easy installation and replacement, simplifying maintenance tasks and reducing downtime.

Applications of Bearing Housings

Bearing housings are utilized across a wide range of industries and applications, including:

• Industrial Machinery: Supporting shafts and rollers in equipment like conveyors, mixers, and crushers.

• Automotive Sector: Used in various vehicle components to support rotating parts and reduce friction.

• Agricultural Equipment: Essential in machinery such as tractors and harvesters, ensuring reliable operation in harsh conditions.

• Aerospace Industry: Employed in aircraft systems to support critical rotating components with high precision.

Conclusion

Understanding the function and importance of bearing housings is fundamental for maintaining and designing efficient mechanical systems. By providing support, protection, and alignment for bearings, these housings ensure the smooth and reliable operation of machinery across various industries.
